The fense trailer is a trailer designed with a fence structure. Mainly used for the transportation of agricultural and sideline products and other light but big goods.

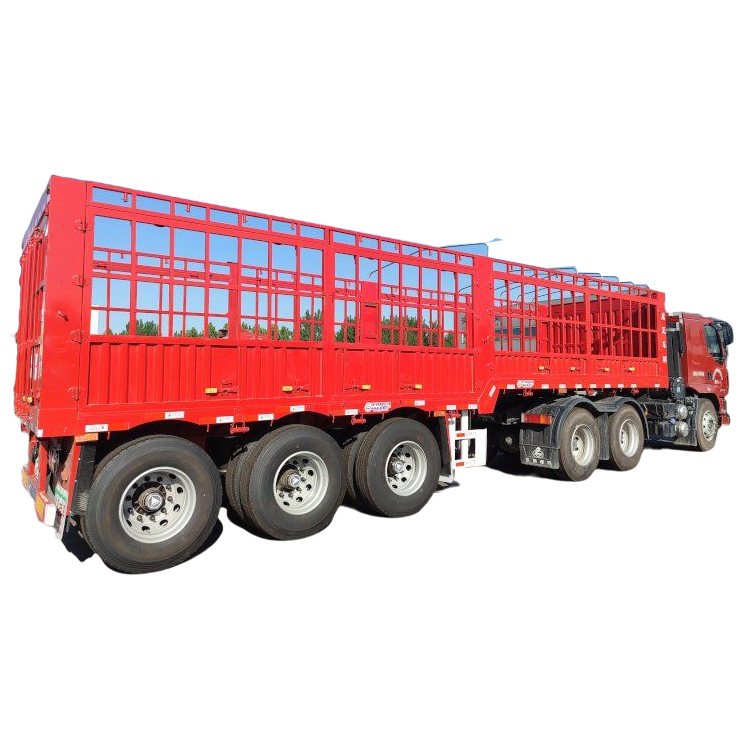

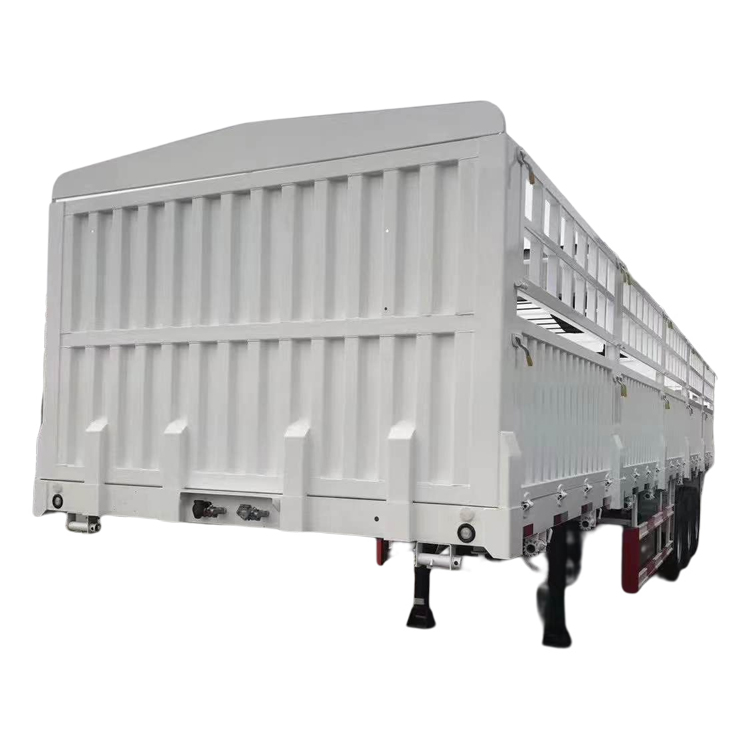

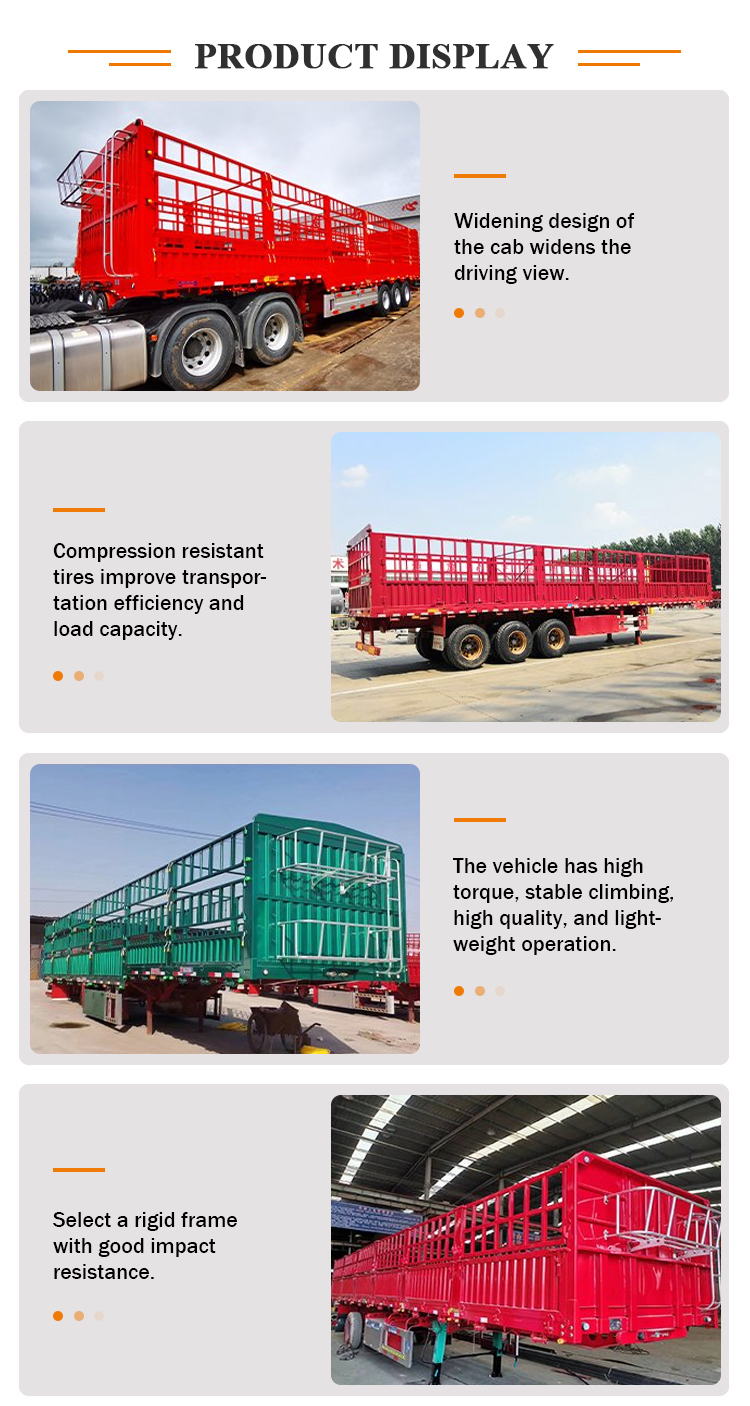

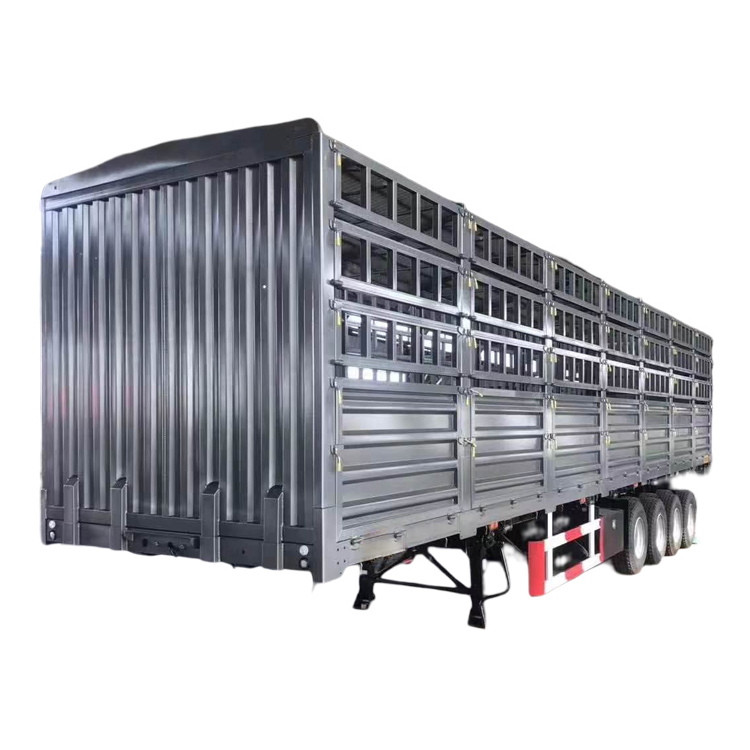

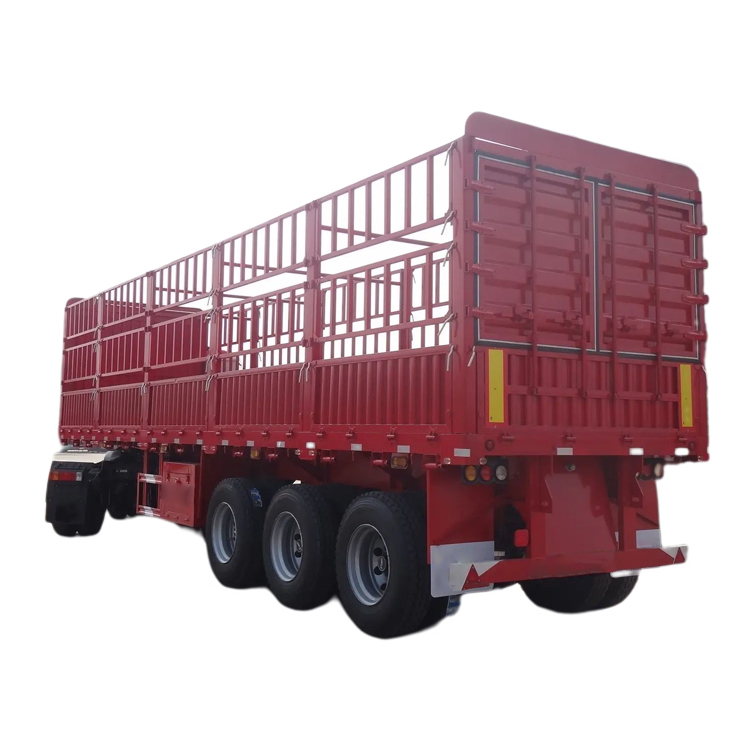

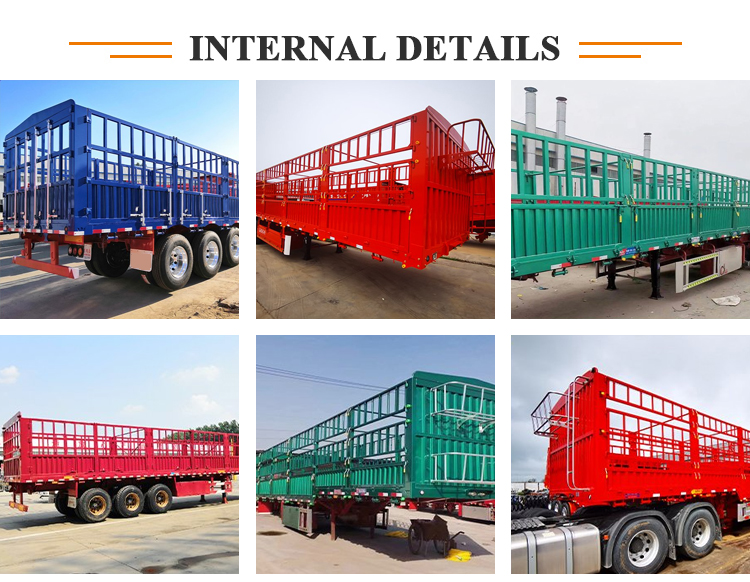

Lattice cargo trailer are designed by a fence structure that carries cargo by the warehouse-type. Most of them are mainly used to transport agricultural and sideline products such as fruits, vegetables, as well as some daily necessities and other light foam goods. With the removable fence, Lattice cargo trailer can also be used as a flatbed semi-trailer for container transport.
We are the top one and professional semi-trailer supplier.
We can give you better product and favorable price.
ZLIN Vehicle has successfully entered into over 50 countries around the world
| Type: | 40ft side wall semi trailer | |
| Dimensions: | Outside dimension | 12500*2500*2700 mm |
| OEM parts: | Axle | 3 *13 tons capacity, FUWA brand |
| King Pin | 2.00’’(50#) bolting king pin | |
| Suspension | Two-axle | |
| Steel Spring | Four sets of 16pcs leaf spring | |
| Side wall | 1200mm high side wall | |
| Landing legs | 28 Tons | |
| Tire specs | 11R22.5, Aeolus tire | |
| Rim | 8.25-22.5 | |
| Number of wheel | 8 pieces | |
| Brake system | Four double brake chamber | |
| Electrical: | One unit of 24V 7-pin ISO socket; LED light | |
Loading capacity : 40cbm
King pin diameter : 2 or 3.5 inch
Chassis brand : SINOTRUK
Overall dimensions : 10100X2496X3048mm
Drive mode : 6×4
Fuel Tanker: 20000L
