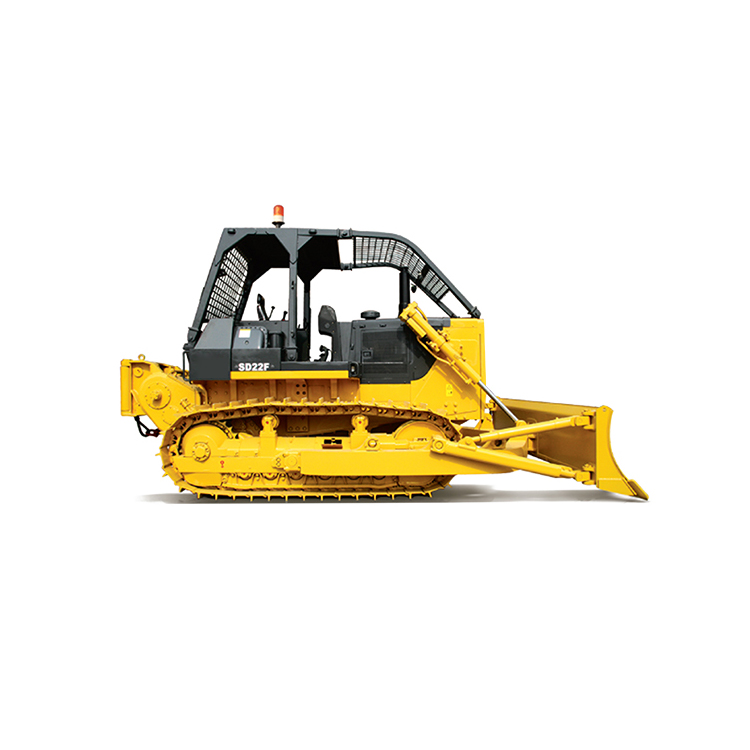

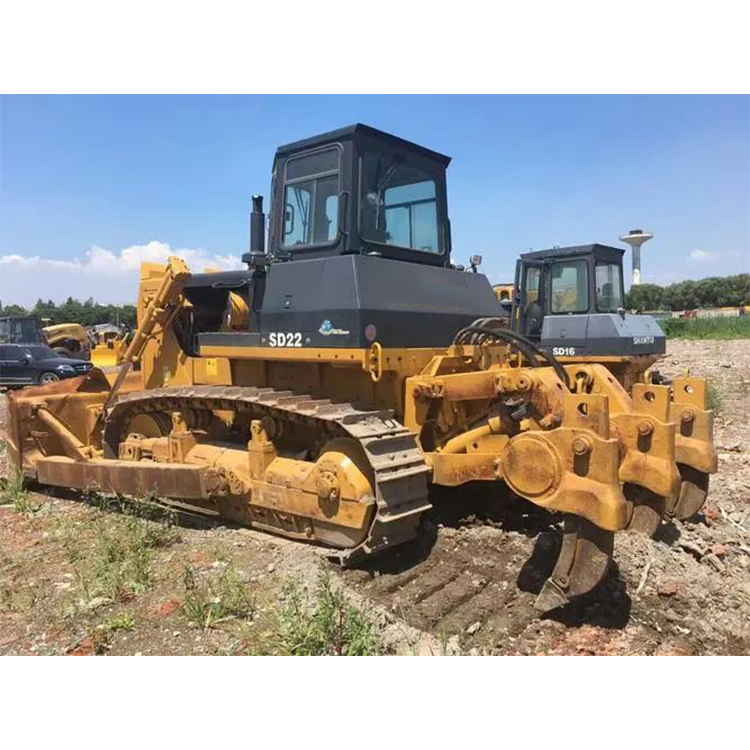

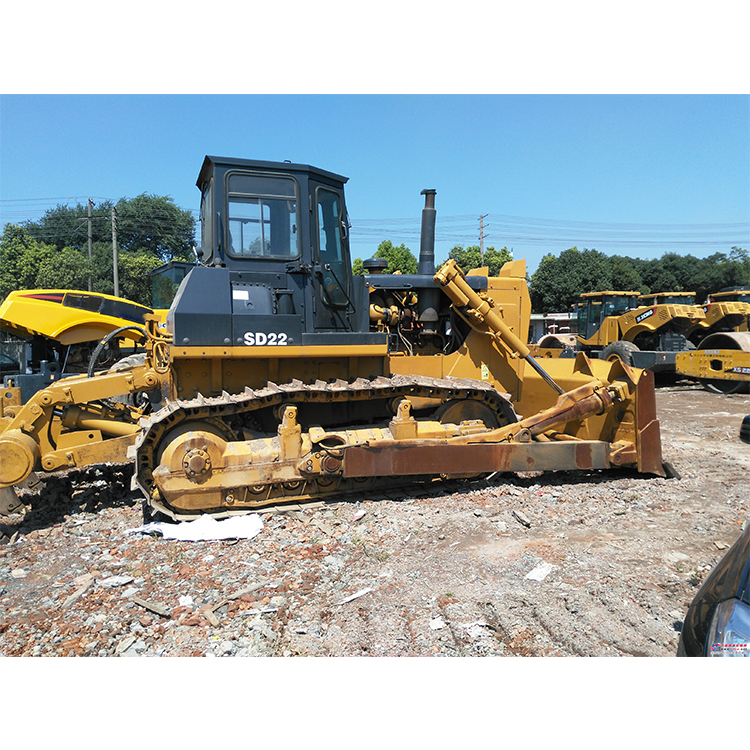

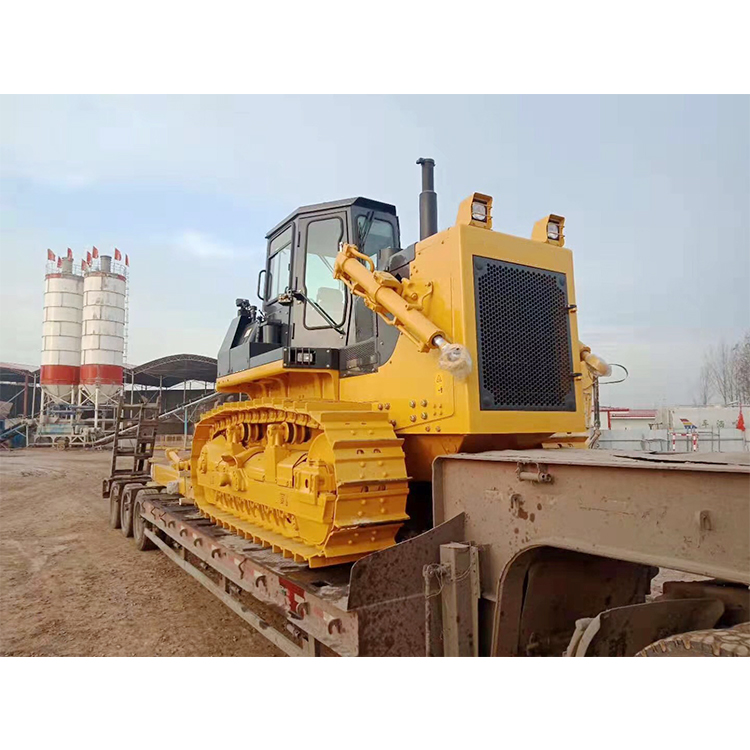

The Shantui SD22W Bulldozer is a heavy-duty crawler bulldozer designed for earthmoving, land development, road construction, and mining applications. With an operating weight of approximately 23.4 tons and a 162 kW engine, it delivers the pushing power and traction needed to handle soil, loose material, and demanding ground conditions.

Equipped with a 6.4 m³ straight tilting blade, the SD22W efficiently moves large volumes of material across construction sites. Optional angle, U-shaped, and semi-U blades allow buyers to select a configuration suited to different earthmoving and material-handling requirements.

Its tracked undercarriage provides stable ground contact on uneven terrain, making the SD22W a practical choice for contractors, mining operators, and equipment distributors seeking a versatile crawler bulldozer.

The Shantui SD22W crawler bulldozer is suitable for large-scale earthmoving and site preparation where strong pushing force, stable traction, and reliable material movement are essential.

1. Road Construction and Maintenance

Levels roadbeds, clears soil, and moves loose material during highway construction, rural road development, and road maintenance.

2. Mining and Quarry Operations

Pushes loose earth, clears overburden, and assists with material handling around mining and quarry sites.

3. Land Development and Site Preparation

Clears vegetation and surface material, levels uneven ground, and prepares land for industrial facilities, commercial developments, and infrastructure projects.

4. Earthmoving and Embankment Construction

Moves soil and fills, shapes embankments, and assists with terrain leveling across large construction areas.

5. Agricultural and Forestry Land Clearing

Helps clear rough land, move soil, and prepare large areas for agricultural development or forestry access routes, subject to the appropriate blade configuration and site conditions.

The Shantui SD22W combines strong engine output, a high-capacity blade, and a durable tracked chassis to support demanding earthmoving operations. Its available blade options and practical transmission configuration make it suitable for a wide range of construction and mining environments.

1. Powerful 162 kW Engine

The 162 kW engine delivers the power required for pushing soil, leveling terrain, and moving loose material across large sites.

2. High-Capacity Bulldozer Blade

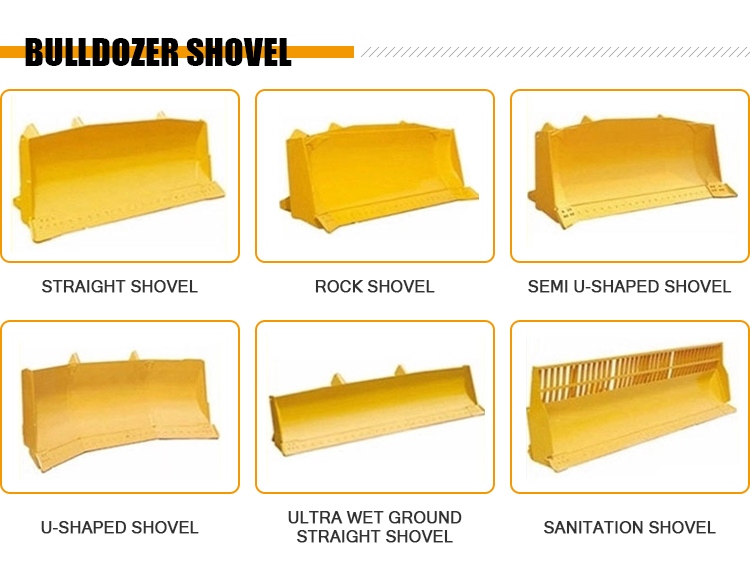

The standard 6.4 m³ straight tilting blade handles substantial volumes of material. Optional angle, U-shaped, and semi-U blades provide additional flexibility for different operating conditions.

3. Stable Tracked Undercarriage

The 560 mm-wide tracks and 77 kPa ground pressure support traction and stability on uneven or relatively soft terrain.

4. Three Forward and Three Reverse Gears

The planetary transmission provides three forward and three reverse gears, allowing operators to select suitable travel speeds for different terrain and material-moving tasks.

5. Flexible Configuration Options

Buyers can select compatible blade configurations and an optional single- or three-tooth ripper to match site conditions and ground penetration requirements.

Looking for a Shantui SD22W Bulldozer?

Contact us for the latest price, available configurations, delivery options, and export details. Leave an inquiry with your destination country and preferred blade configuration, and our team will help you find a suitable machine for your needs.
