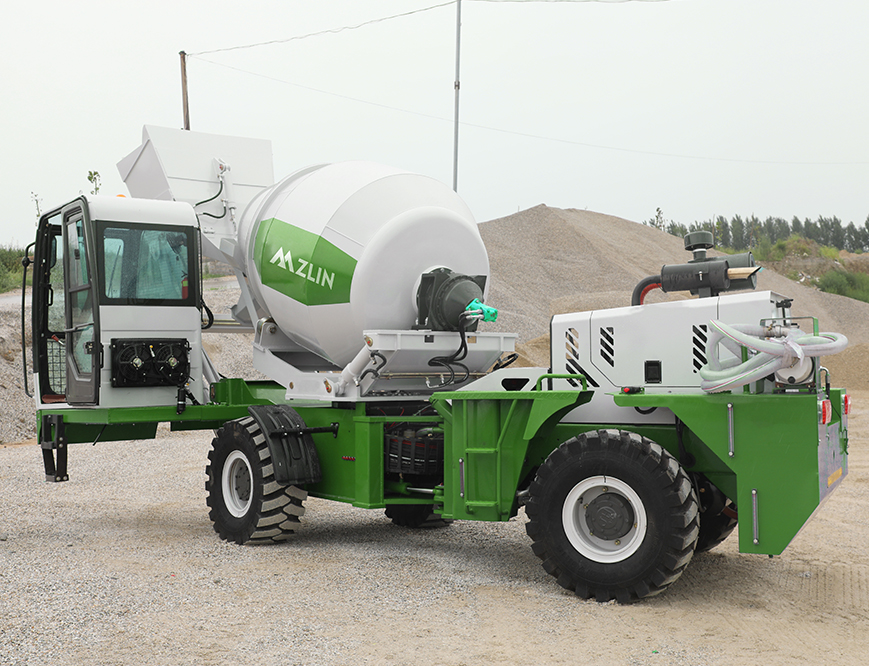

The structure of the self-feeding mixer truck is divided into several major systems, including the mixing cylinder and its auxiliary devices, the driving device of the mixing cylinder, the power equipment and the carrying chassis. The following ZLIN heavy industry for you to talk about the operation of the five important notes it.

1.When the vehicle is unloading, if there is water evaporation, the collapse degree is low and not able to meet the requirements of customers, you can add water to the cylinder in an appropriate amount, and then unload at a rotating speed of 10-14r/min after 30 revolutions, so that the concrete can have a more adequate mixing.

2. In the process of transporting concrete, it is forbidden to stop the tank, because it will lead to concrete condensation, and restarting it after stopping will also cause a certain impact on the reducer and hydraulic system, which will damage the motor and hydraulic pump.

3. The water tank needs to be filled from time to time in case there is a need for it. Before the tank is filled, the air release valve should be opened to release all the air from the tank. When flushing, you should open the inspiration, and when you finish flushing or stop using, you need to let the gas out of the water off. Especially in winter when it is parked, there should not be any water left in the water supply system or in the tank.

4. When the self-loading mixer is driven on the road, the extension chute should be placed on top of the discharge chute support and hung firmly on hooks, not on the main discharge chute. The main discharge chute needs to be rotated to a fixed position, before pulling down on the positioning handle and locking the locking handle paralysing the luffing mechanism to prevent accidents caused by its unstable swaying and affecting the normal movement of other vehicles.

5. If a full load of concrete is in positive rotation and needs to be reversed, it is necessary to control the handle so that it can be transmitted steadily, and then control the handle so that it can be reversed. The handle must not be reversed while in forward rotation. In addition, when the vehicle is driving with no load, the mixing cylinder should not be stopped to avoid abnormal damage caused by the bumping of the drag wheel and the raceway during the driving process. The above is the detailed introduction of the automatic loading mixer truck, hope it will help you.
